Check Valve

One kind of valve used in plumbing systems to stop backflow is the check valve. It only permits one direction of fluid flow, and when the fluid's direction changes, it immediately closes to halt the reverse flow. Check valves are essential for preventing backpressure-related damage to pumps, compressors, and other equipment. They are available in multiple designs, such as swing, ball, and diaphragm varieties, each appropriate for distinct fluid kinds and purposes.

Part Number : BICV-0F01 Dwyer Instruments BICV-0F01 | Brass inline check valve | 3/8" connection | 4.55 Cv value | Weight 5.9 oz (168 g)

VIEW ADD TO CART

Part Number : BICV-0F02 Dwyer Instruments BICV-0F02 | Brass inline check valve | 1/2" connection | 6.0 Cv value | Weight 5.1 oz (145 g)

VIEW ADD TO CART

Part Number : BICV-0F03 Dwyer Instruments BICV-0F03 | Brass inline check valve | 3/4" connection | 11.0 Cv value | Weight 7.8 oz (222 g)

VIEW ADD TO CART

Part Number : BICV-0F04 Dwyer Instruments BICV-0F04 | Brass inline check valve | 1" connection | 16.9 Cv value | Weight 10.9 oz (308 g)

VIEW ADD TO CART

Part Number : BICV-0F05 Dwyer Instruments BICV-0F05 | Brass inline check valve | 1-1/4" connection | 27.4 Cv value | Weight 1.1 lb (0.51 kg)

VIEW ADD TO CART

Part Number : BICV-0F06 Dwyer Instruments BICV-0F06 | Brass inline check valve | 1-1/2" connection | 39.1 Cv value | Weight 1.6 lb (0.73 kg)

VIEW ADD TO CART

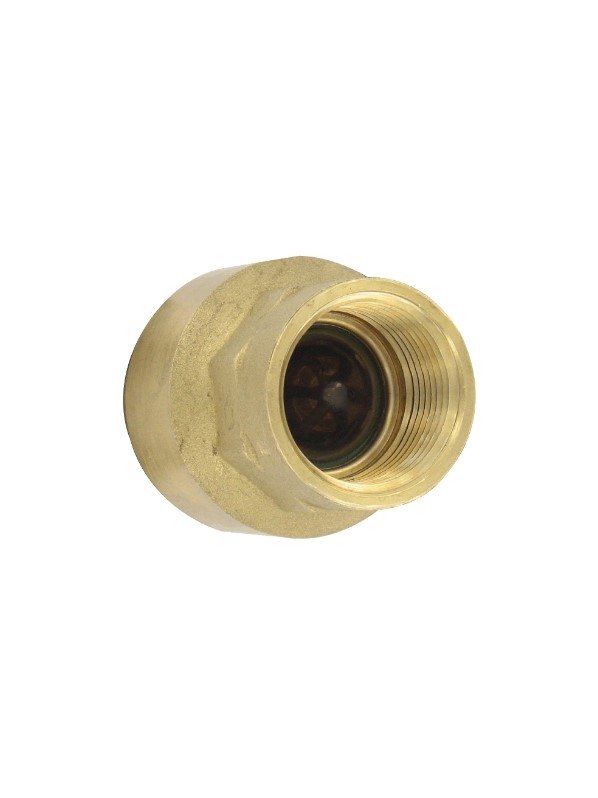

Part Number : BICV-0F07 Dwyer Instruments BICV-0F07 | Brass inline check valve | 2" connection | 60.7 Cv value | Weight 2.3 lb (1.03 kg)

VIEW ADD TO CART

Part Number : BICV-0F08 Dwyer Instruments BICV-0F08 | Brass inline check valve | 2-1/2" connection | 98.4 Cv value | Weight 4.8 lb (2.19 kg)

VIEW ADD TO CART

Part Number : BICV-0F09 Dwyer Instruments BICV-0F09 | Brass inline check valve | 3" connection | 158.0 Cv value | Weight 6.7 lb (3.04 kg)

VIEW ADD TO CART

Part Number : BICV-0F10 Dwyer Instruments BICV-0F10 | Brass inline check valve | 4" connection | 225.4 Cv value | Weight 12.4 lb (5.64 kg)

VIEW ADD TO CART

Part Number : BICV-0N00 Dwyer Instruments BICV-0N00 | Brass inline check valve | 1/4" connection | 4.55 Cv value | Weight 3.5 oz (100 g)

VIEW ADD TO CART

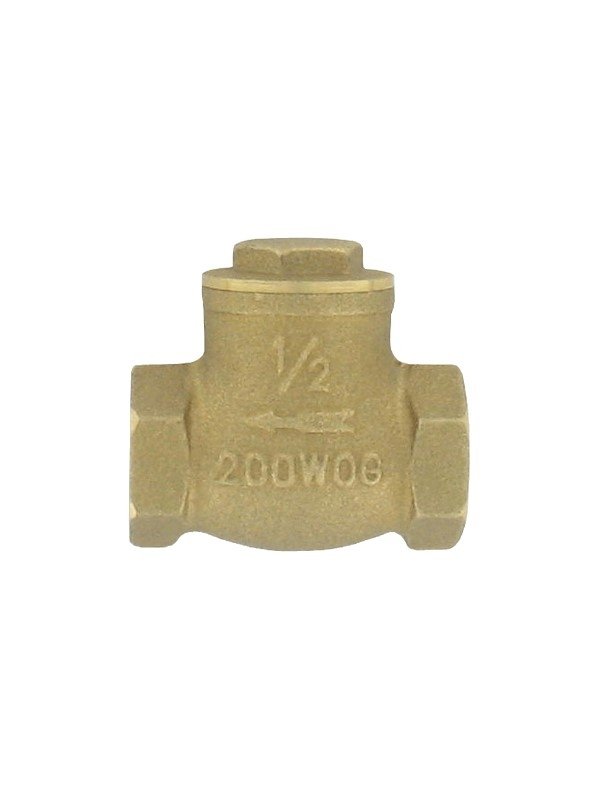

Part Number : BFC-03 Dwyer Instruments BFC-03 | Brass flap check valve | 1-1/4" pipe size

VIEW ADD TO CART

Dwyer BICV-0F01, Dwyer BICV-0F02, Dwyer BICV-0F03, Dwyer BICV-0F04, Dwyer BICV-0F05, Dwyer BICV-0F06, Dwyer BICV-0F07, Dwyer BICV-0F08, Dwyer BICV-0F09, Dwyer BICV-0F10, Dwyer BICV-0N00, Dwyer BFC-03
