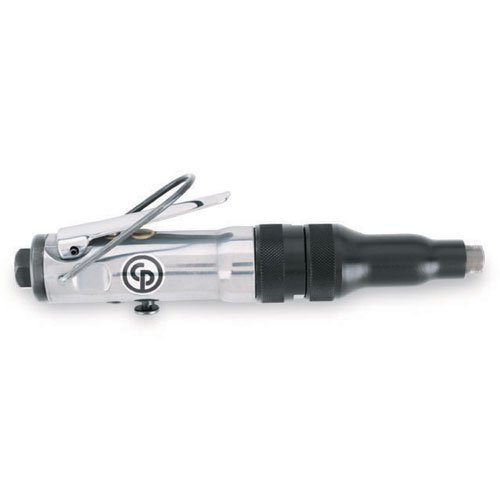

Chicago Pneumatic CP783 Screwdrivers - Cushion 1.13-2.83NM

Name: Chicago Pneumatic CP783 Screwdrivers - Cushion 1.13-2.83NM
Brand: ChicagoPneumatic
SKU: CP783
Rating: 5 (1 reviews)

Brand :

Stock Status :

In Stock

Brand :

Stock Status :

In Stock

Part Number : CP783

Price : AED 2543.64

Compact & High speed. Reliable cushion clutch. Comfortable use thanks to low weight. Faster cycle times with 2000rpm. Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications.Range: 1.13 - 2.83 Nm 0.8 - 2.06 ft.lbs

Specification
Features

Get Catalog

Specifications

Details

Handle Type

Straight

Vibration uncertainty (K)

- m/s²

Bit holder

Quick Change Hexagonal Female

Vibration ISO

ISO-28927-2

Vibration

<2.5 m/s²

Diameter

Metric: 16 mm Imperial: 0.61"

Product Number

T025098

Brand

Chicago Pneumatic

Length

Metric: 226 mm Imperial: 8.88"

Model Number

CP783

Output drive

1/4"

Average air consumption

Metric: 1.9 l/s 113 l/mn Imperial: 4 cfm

Actual air consumption

Metric: 7.6 l/s 453 l/mn Imperial: 16 cfm

Sound Power

99.1 db(A)

Air inlet thread size

1/4"

Free speed air consumption

Metric: 4.2 l/s Imperial: 4.2 l/s

Net weight

Metric: 0.6 kg Imperial: 1.33 lb

Max working torque

Metric: 2.83 Nm Imperial: 2.06 ft.lbs

Sound pressure

88.1 db(A)

Clutch type

Cushion

Min working torque

Metric: 1.13 Nm Imperial: 0.8 ft.lbs

Free Speed

2000 rpm

Min. Hose Size

Metric: 10 mm Imperial: 3/8"
