Model Options

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

0,00005"/0,001 mm
[0.00008 + 0.00004 (L/4)]
0.000012"
Inch/Metric
Digital
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Yes
Including box, setting standard
Yes
Thimble and sleeve satin chrome finish, ø18 mm
Approx. 2,4 years
Carbide-tipped, micro-lap finish, stepped
product

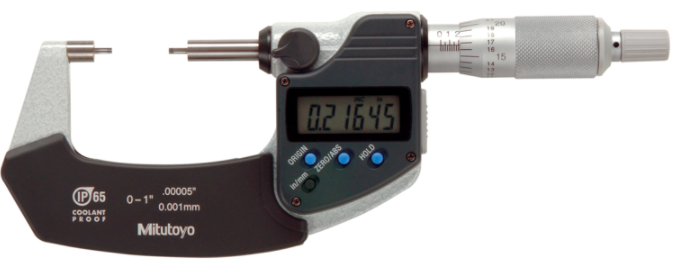

Mitutoyo 331-362-30 Digital Spline Micrometer IP65 Inch/Metric, 1-2", 2mm Measuring Face

Brand : Image Brand
Stock Status : Contact us for delivery
Brand : Image Brand
Stock Status : Out of Stock

Part Number : 331-362-30

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits: Outstanding accuracy and oil-resistant material used for all plastic parts (IP65) Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways. Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

Quantity:
  • Specification
  • Features
  • Catalog
